Model Whirlpool C2757^0 GAS COOK-TOP – Common Parts & Diagrams

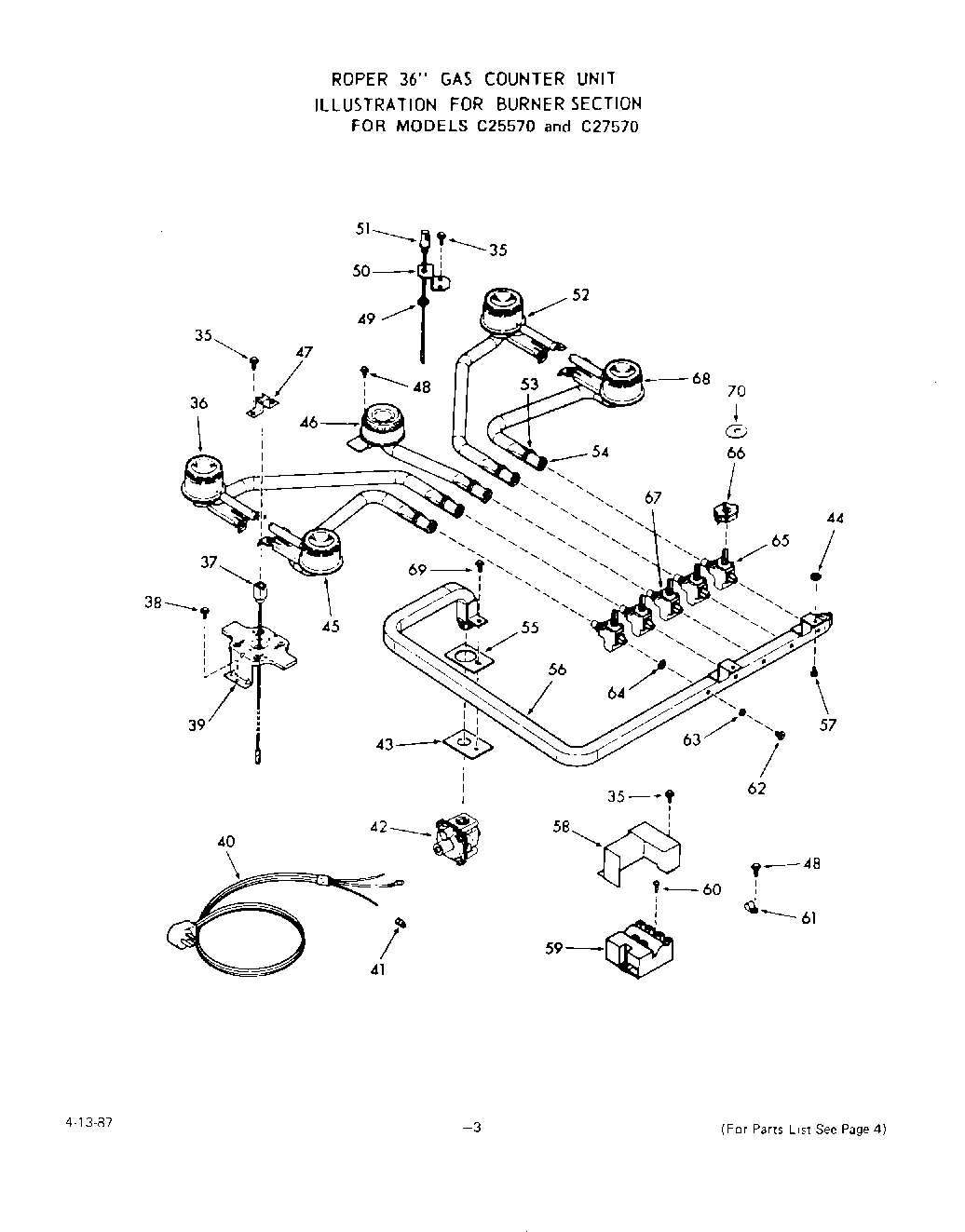

03 - BURNER

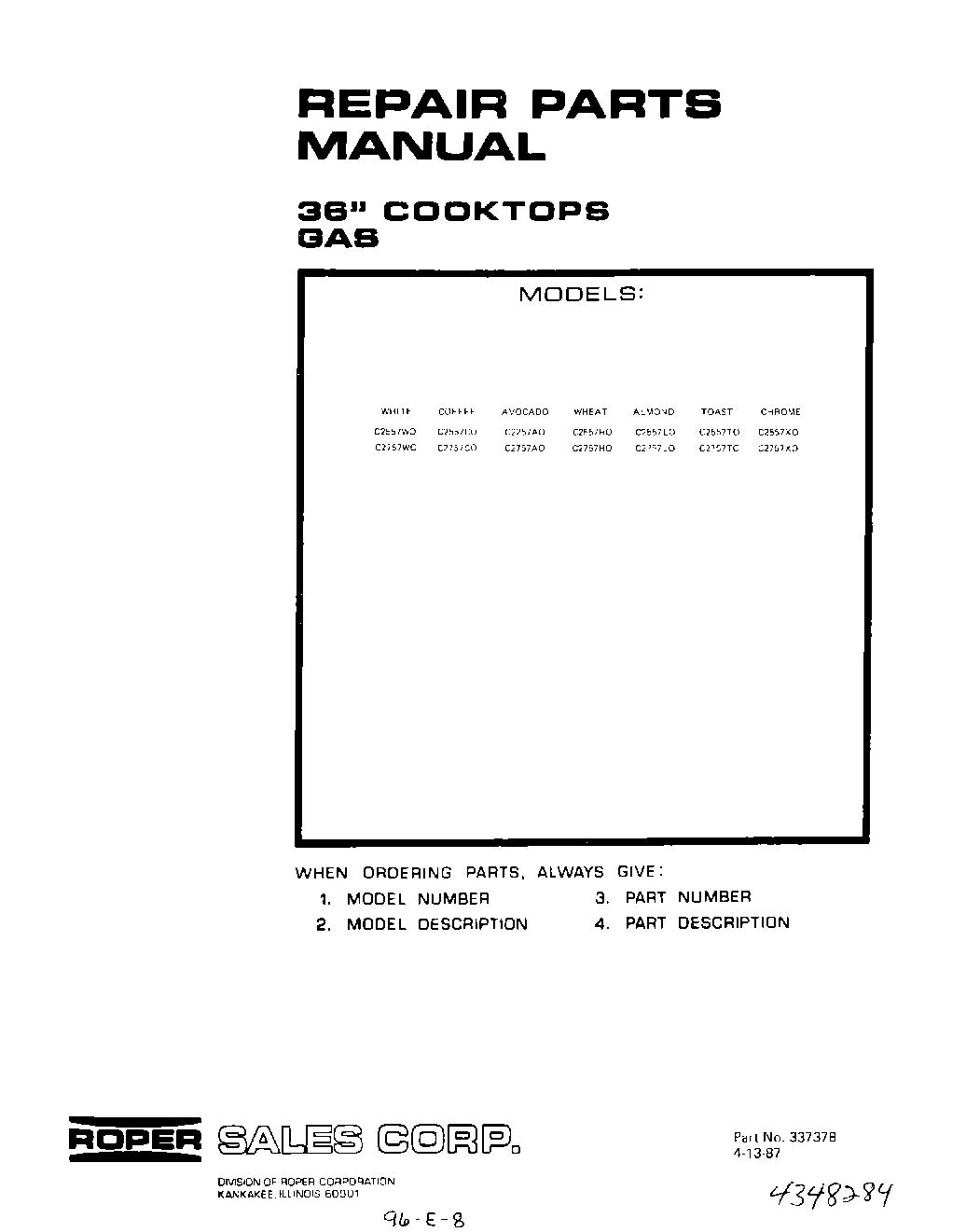

01 - COVER
05 - WIRING DIAGRAM

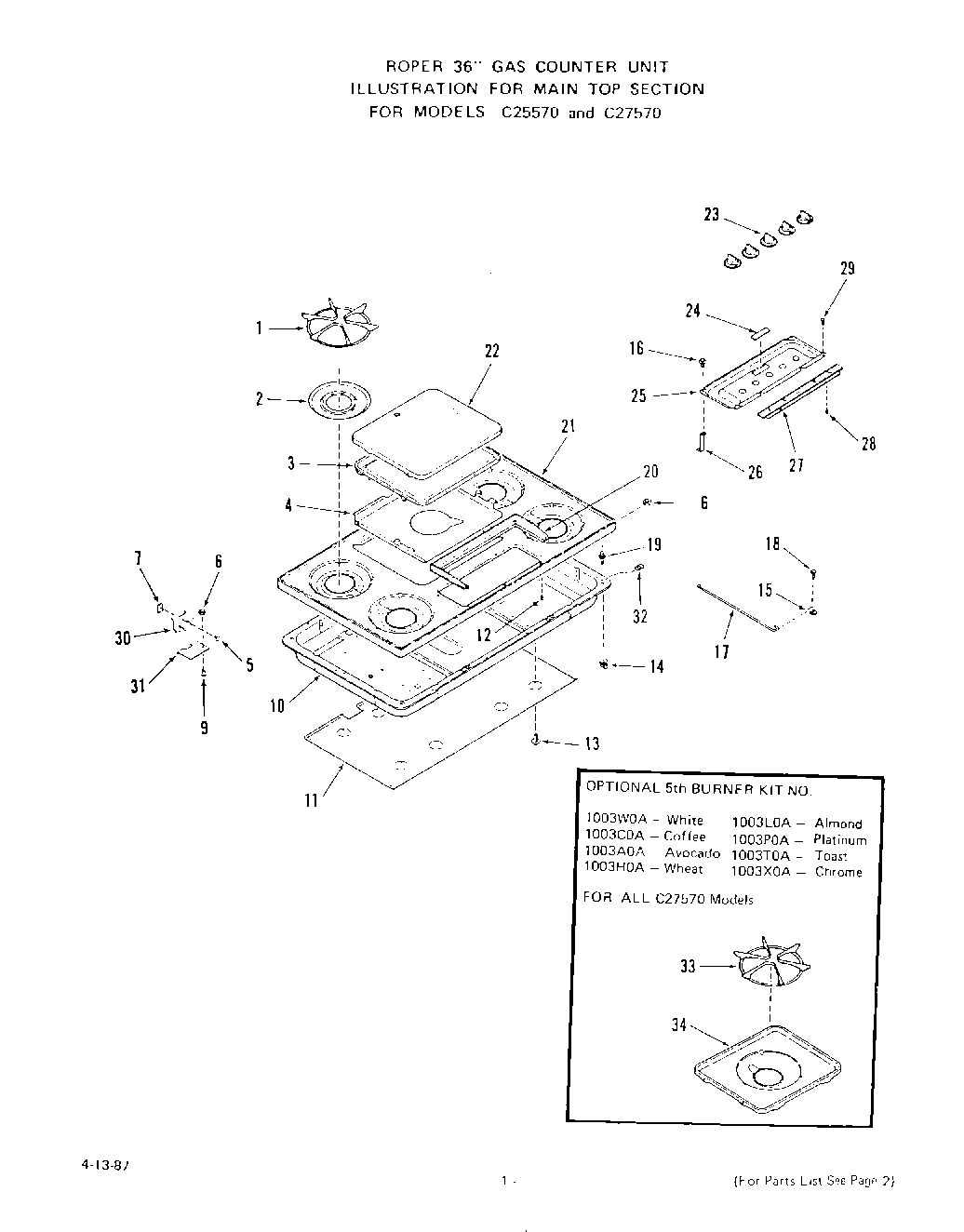

02 - MAIN TOP
Common parts from model Whirlpool C2757^0 GAS COOK-TOP
WPL ARI21132A7 WPL ARI21132A7 Contact Us For Availability
2
Spill Bowl (4 Req) WPL 310385 Contact Us For Availability
3
Griddle Plate WPL 321745 Contact Us For Availability
4
Baffle-Griddle Burner WPL 329771 Contact Us For Availability
5
Screw 10 - 32 x 3/8`` WPL 102429 Contact Us For Availability
6
Keps Nut 8-32 WPL 239764 Contact Us For Availability
7
Speed Nut WPL 24345 Contact Us For Availability
9
Screw 8-32x1/4`` WPL 322183 Contact Us For Availability
10
Burner Box WPL 332670 Contact Us For Availability
11
Shield-Burner Box WPL 323394 Contact Us For Availability
14
Catch (2 Req) WPL 24667 Contact Us For Availability
15
Clamp WPL 285945 Contact Us For Availability
16
Screw 10 - 32 x 1/4`` WPL 105771 Contact Us For Availability
17
Support Rod-Main Top WPL 315379 Contact Us For Availability
18
Screw 10-32x3/8`` WPL 239113 Contact Us For Availability
19
Strike (2 Req) WPL 299784 Contact Us For Availability
20
Bezel-Controls WPL 302899 Contact Us For Availability
21
C2757WO Coffee WPL 325562 Contact Us For Availability
21
C2757CO Avocado WPL 325563 Contact Us For Availability
21
C2757AO Golden Wheat WPL 325564 Contact Us For Availability
21
C2757HO Almond WPL 325565 Contact Us For Availability
21
C2757LO Platinum WPL 325566 Contact Us For Availability
21
C2757XO WPL 325569 Contact Us For Availability
21
C2557WO WPL 325583 Contact Us For Availability
21
C2557CO WPL 325584 Contact Us For Availability
21
C2557AO WPL 325585 Contact Us For Availability
21
C2557HO WPL 325586 Contact Us For Availability
21
C2557LO WPL 325587 Contact Us For Availability
21
C2557XO WPL 325590 Contact Us For Availability
21
C2757PO Toast WPL 329772 Contact Us For Availability
21
C2757TO Chrome WPL 329773 Contact Us For Availability
21
C2557PO WPL 337940 Contact Us For Availability
21
C2557TO WPL 337941 Contact Us For Availability
21
Main Top White WPL ARI21113A2 Contact Us For Availability
22
Chrome WPL 324366 Contact Us For Availability
22
White WPL 327867 Contact Us For Availability
22
Coffee WPL 327868 Contact Us For Availability
22
Avocado WPL 327869 Contact Us For Availability
22
Wheat WPL 327870 Contact Us For Availability
22
Almond WPL 327871 Contact Us For Availability
22
Platinum WPL 329847 Contact Us For Availability
22
Toast WPL 329848 Contact Us For Availability
22
Griddle Cover (C27570 Models) WPL ARI21114A5 Contact Us For Availability
23
5 Req. WPL 315926 Contact Us For Availability
23
5 Req. WPL 329277 Contact Us For Availability
23
Knob-Gas Valve WPL ARI21115A1 Contact Us For Availability
24
Name Plate WPL 303098 Contact Us For Availability
25
C2557O WPL 302786 Contact Us For Availability
25
Motor Fan (Alternate) WPL 310221 Contact Us For Availability
25
Control Panel WPL ARI21116A8 Contact Us For Availability
26
Bracket-Control Panel (2 Req) WPL 111228 Contact Us For Availability
27
C2757O WPL 302898 Contact Us For Availability
27
C2557O WPL 302900 Contact Us For Availability
27
Front Trim WPL ARI21117A7 Contact Us For Availability
28
Screw 7-32x5/16`` WPL 299632 Contact Us For Availability
29
Screw 6-32x1/4`` WPL 97220 Contact Us For Availability
30
Upper Leaf-Hinge (Lt. or Rt.) WPL 323352 Contact Us For Availability
31
Lower Leaf-Hinge (Lt. or Rt.) WPL 321869 Contact Us For Availability
32
Washer WPL 310218 Contact Us For Availability
33
Top Grate WPL 316786 Contact Us For Availability
34
White WPL 325413 Contact Us For Availability
34
Coffee WPL 325414 Contact Us For Availability
34
Avocado WPL 325415 Contact Us For Availability
34
Wheat WPL 325416 Contact Us For Availability
34
Almond WPL 325417 Contact Us For Availability
34
Platinum WPL 329844 Contact Us For Availability
34
Toast WPL 329845 Contact Us For Availability
34
Chrome WPL 329846 Contact Us For Availability
34
Griddle Aeration Pan WPL ARI21118A1 Contact Us For Availability
36
Top Burner Assembly (Lt. Rear) WPL 310301 Contact Us For Availability
37
Right WPL 312454 Contact Us For Availability
37
Left WPL 312455 Contact Us For Availability
37
Electrode-Spark Igniter WPL ARI21119A5 Contact Us For Availability
39
Right WPL 310290 Contact Us For Availability
39
Left WPL 311501 Contact Us For Availability
39
Support-Top Burner WPL ARI21120A2 Contact Us For Availability
40
Cord w/Plug WPL 309854 Contact Us For Availability
41
Small WPL 66763 Contact Us For Availability
41
Large WPL 85493 Contact Us For Availability
41
Wire Connector WPL ARI21121A9 Contact Us For Availability
42
Pressure Regulator WPL 324529 Contact Us For Availability
43
Seal-Manifold WPL 312735 Contact Us For Availability
45
Top Burner Assembly (Lt. Front) WPL 310303 Contact Us For Availability
46
C25570 Models WPL 310305 Contact Us For Availability
46
C27570 Models WPL 329757 Contact Us For Availability
46
Griddle Burner Asm. WPL ARI21122A3 Contact Us For Availability
47
Bracket-Spark Igniter (Lt. or Rt.) WPL 312453 Contact Us For Availability
48
Screw 10 - 32 x 7/16`` WPL 295850 Contact Us For Availability
49
Nut - C25570 Models WPL 304281 Contact Us For Availability
50
C25570 Models WPL 309996 Contact Us For Availability
50
C27570 Models WPL 325558 Contact Us For Availability
50
Support-Griddle Electrode WPL ARI21123A4 Contact Us For Availability
51
C27570 Models WPL 312598 Contact Us For Availability
51
C25570 Models WPL 321929 Contact Us For Availability
51
Electrode-Spark Igniter (Griddle) WPL ARI21124A2 Contact Us For Availability
52
Top Burner Asm. (Rt. Rear) WPL 310300 Contact Us For Availability
53
Adjustment Screw-Air Shutter WPL 301911 Contact Us For Availability
54
Air Shutter WPL 301910 Contact Us For Availability
55
Retainer-Manifold Seal WPL 312736 Contact Us For Availability
56
C27570 Models WPL 323389 Contact Us For Availability
56
C25570 Models WPL 323395 Contact Us For Availability
56
Manifold Pipe WPL ARI21125A5 Contact Us For Availability
57
Screw 8-32 x 3/8`` WPL 238833 Contact Us For Availability
58
Wire Cover-Module WPL 325855 Contact Us For Availability
59
C25570 Models WPL 320990 Contact Us For Availability
59
C27570 Models WPL 321965 Contact Us For Availability
59
Module-Spark Igniter WPL ARI21126A1 Contact Us For Availability
60
Screw 6-20x3/8`` WPL 327621 Contact Us For Availability
61
Clamp-Nylon WPL 109266 Contact Us For Availability
62
C25570 Models WPL 311455 Contact Us For Availability
62
Screw-Valve Mounting WPL ARI21127A2 Contact Us For Availability
63
C25570 Models WPL 304241 Contact Us For Availability
63
Rubber Gasket WPL ARI21128A8 Contact Us For Availability
64
C27570 Models WPL 313563 Contact Us For Availability
64
Rubber Gasket WPL ARI21129A3 Contact Us For Availability
65
Gas Valve (4 Req) WPL 313224 Contact Us For Availability
66
C27570 Models WPL 311389 Contact Us For Availability
66
Micro Switch-Valve WPL ARI21130A4 Contact Us For Availability
67
Gas Valve-Griddle-C27570 Models WPL 315190 Contact Us For Availability
68
Top Burner Asm. (Rt. Front) WPL 310302 Contact Us For Availability
69
Screw 10 - 32 x 3/8`` WPL 102430 Contact Us For Availability
70
WPL 306589 WPL 306589 Contact Us For Availability
70
WPL 310030 WPL 310030 Contact Us For Availability
70
WPL 310032 WPL 310032 Contact Us For Availability
70
WPL 313143 WPL 313143 Contact Us For Availability
70
WPL 313144 WPL 313144 Contact Us For Availability
70
WPL 314235 WPL 314235 Contact Us For Availability
70
WPL 314236 WPL 314236 Contact Us For Availability
70
WPL 321995 WPL 321995 Contact Us For Availability
70
WPL ARI21131A3 WPL ARI21131A3 Contact Us For Availability
× ![]()
